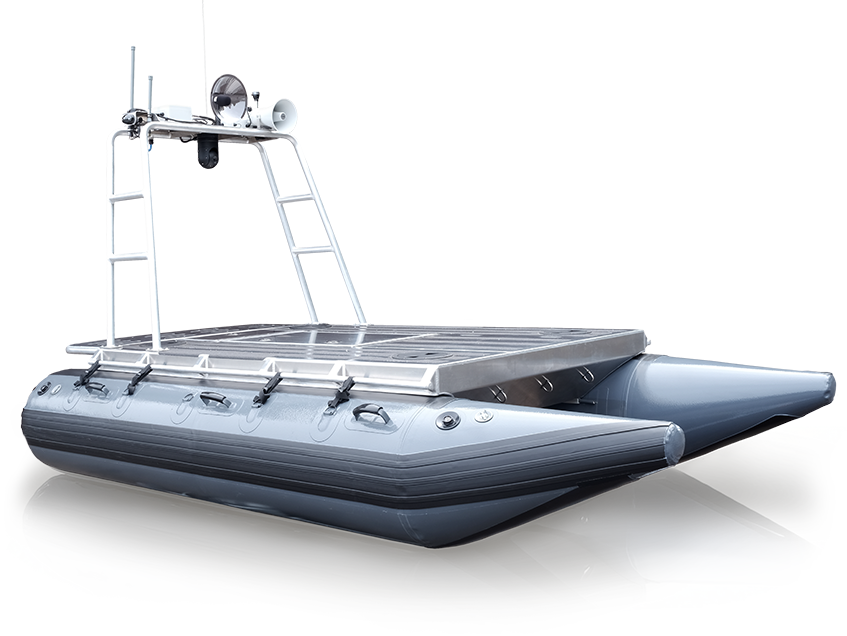

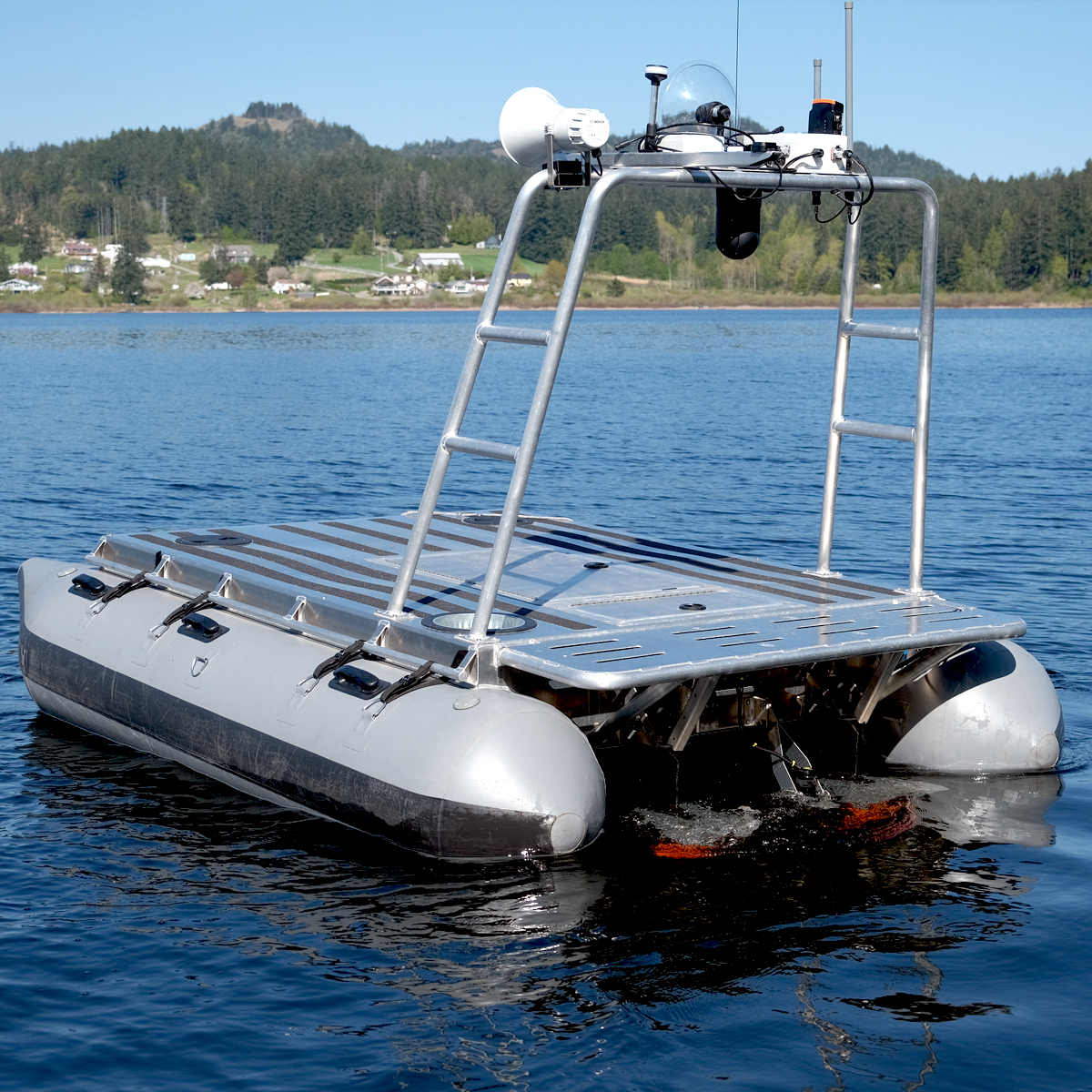

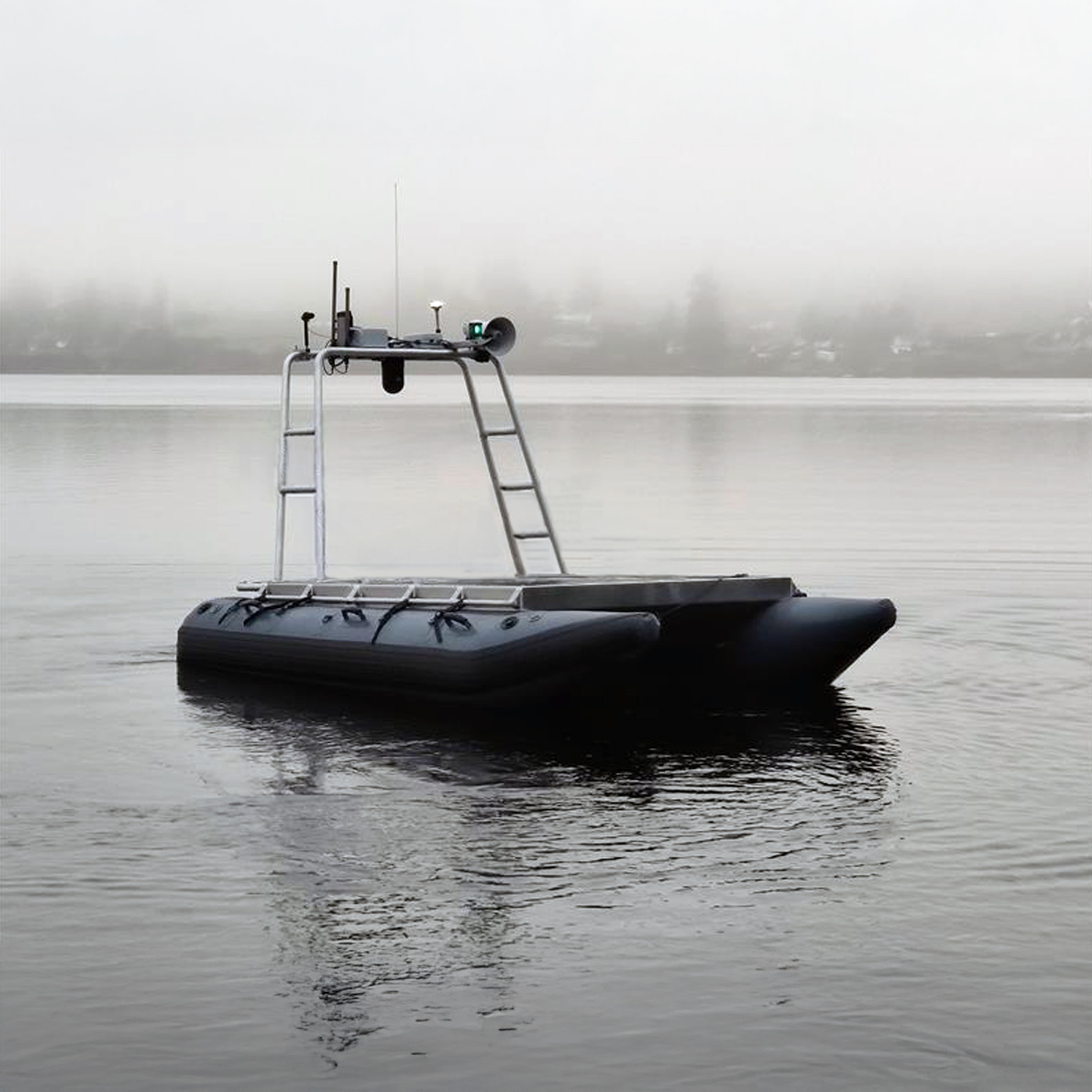

OceanSled® Ranger
Mission-Ready Littoral USV
The OceanSled® Ranger is the latest evolution of the OceanSled platform—an advanced, military-grade uncrewed surface vehicle (USV) engineered for defense operations in contested littoral environments. Built for rugged conditions and modular tasking, Ranger supports remote and autonomous control for ISR, C-UAS, vessel interdiction, and asset inspection. The Ranger platform supports state-of-the-art sensors, real-time data transmission, and flexible payload integration. Ranger is a mission-ready solution for near shore logistics and maritime intelligence operations.
Features
-
- High Payload Capacity
- Optimized for Littoral & Inland Waterways
- Universal sensor integration, aerial, surface, and subsurface
- Interoperable with universal ground control stations
- Designed for Integration to NATO/STANAG
- Local control or Cloud based IP control
- Mesh radio and swarm capable
- Secure Real-Time Data Link
- Joint Operations Across Classified and Unclassified Networks
Enhanced Domain Awareness
When integrated with C4-ISR software such as Shift’s CiMS™ platform and a mission-configurable sensor suite, the Ranger delivers real-time ISR across contested maritime zones. Its secure, interoperable architecture ensures critical intelligence is rapidly transmitted to command elements—accelerating decision cycles and enabling precise, time-sensitive actions.
Operator-Focused, Efficient & Usable
The Ranger is built for ease of use in the field and at remote command stations, with an intuitive interface that reduces training time and operator burden. Its uncrewed design supports extended mission durations while minimizing personnel exposure and logistical overhead.
Multi-Mission Force Multiplier
The Ranger’s modular design supports rapid integration of payloads—including ROVs, UAVs, and advanced sensors—enabling it to execute ISR, interdiction, inspection, and logistics missions from a single platform. This versatility reduces asset requirements and extends mission effectiveness.
Electrical
| Battery Power | 48V LifePO4 Mission Configurable |

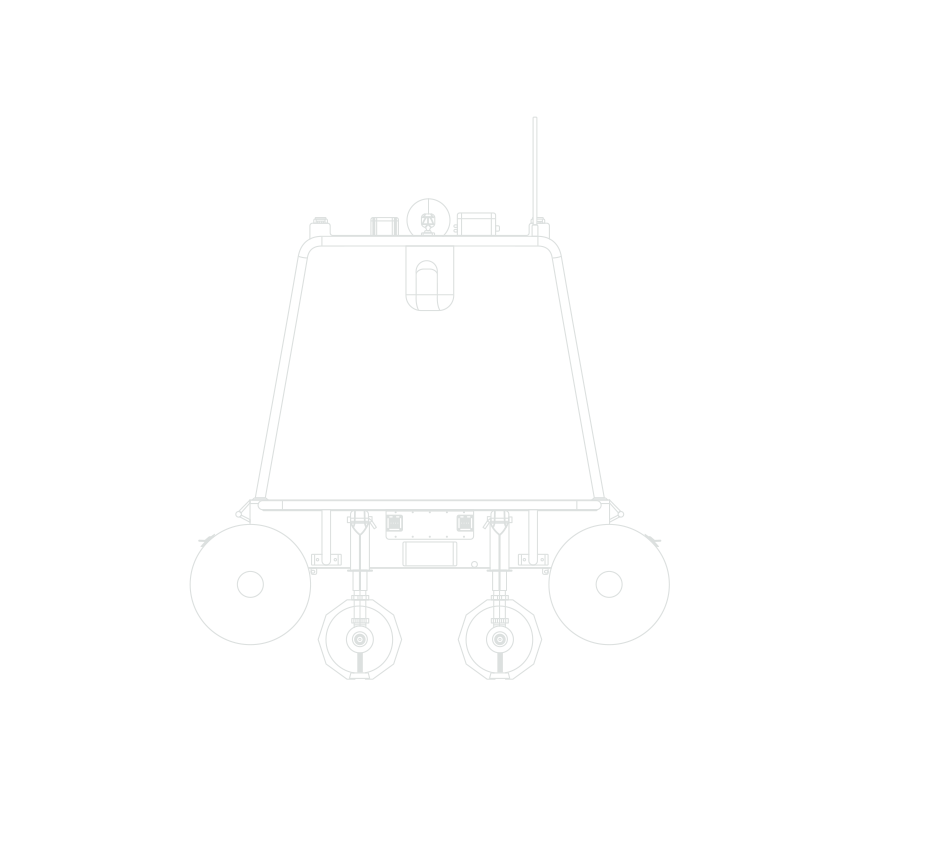

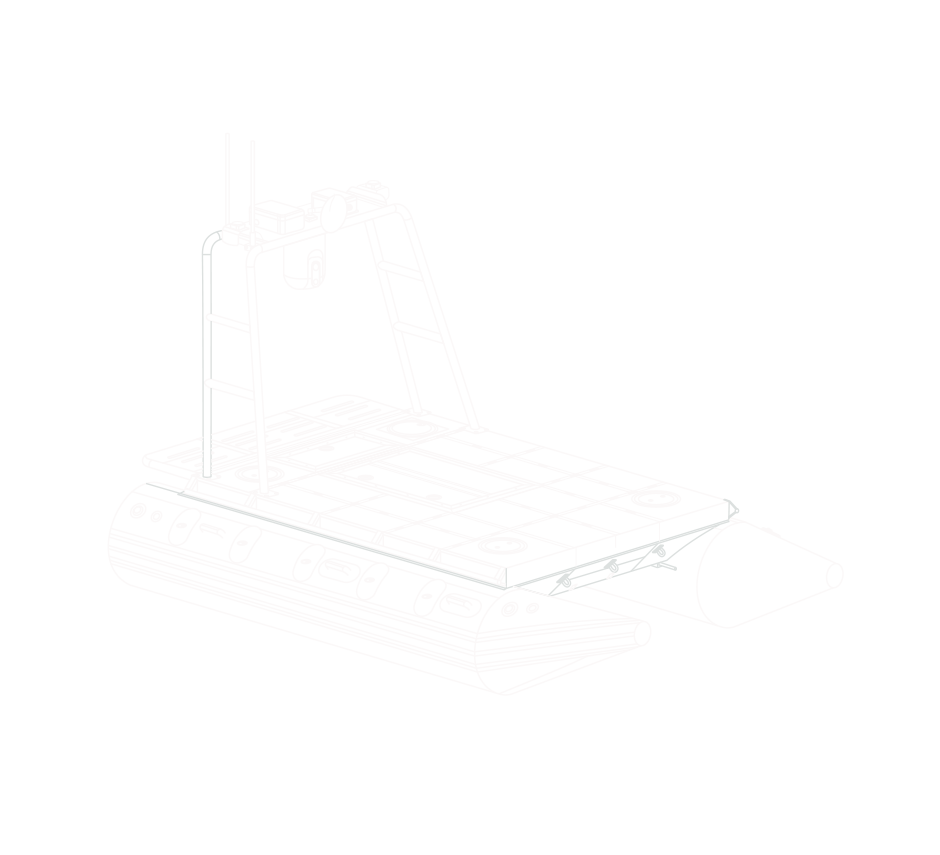

Physical
| Length Overall | 3.7m (12'14") |
| Length on Deck | 2.3m (7'5") ext 2.8m (9'1") |
| Beam | 2.2m (7.4') |
| Deck Area | 3.8m² (41ft²) ext 4.6m² (50ft²) |
| Displacement | 280 Kg (616 lbs) |
| Operating Temperature | 0–40°C |
| Max Speed | 12 knots (22 km/h) |
| Max Payload | 300 kg (661 lbs) |
Base System Components
| Propulsion | Thrusters 2x Cruise 6.0 FP 6kW |
| Lights | Transport Canada Compliant Navigation Lights |
| Auto-Pilot | 3 x IMUs, 2 x Barometers |
| Handheld Controller | UXV Technologies ruggedized GCS |
| Camera | FLIR M364C EO/IR PTZ |
| Field Control Center | Custom Pelican Case with Full featured PC and Controller |
Operational
| Launch & Recovery | Ship, Shore, Aerial |
| Transport | Trailer, Container |
| Sea State | 5+ |
Applications
- ISR Screen for Capital Ships
- Counter UxS
- One way payload
- ASW using towed acoustic array & sonobuoys
- ATOL platform for UAV
- UUV topside support
- Sonobuoy deployment
- Covert Forward Force Protection
- Ship-to-Ship / Ship-to-Shore Logistics Support
Field Control Station
The Field Control Station (FCS) is an integrated hardware solution for multi-domain autonomous platform and vehicle control (C2), with C4-ISR software-defined upgrade paths. Our integrated system hosts the CiMS™ software in the field and connects integrated hardware solutions to the CiMS™ cloud platform. The FCS provides data fusion for multiple rapidly deployable sensors, edge computing options, and IoT integrations. With the optional Advanced Communications Kit, the FCS can establish field communications for teams and provide a bandwidth-aware backlink for remote management.
Extend littoral mission capabilities with Ocean Sled ® Ranger
Discover how the Ranger enhances domain awareness, force multiplication, and near-shore operational effectiveness.
